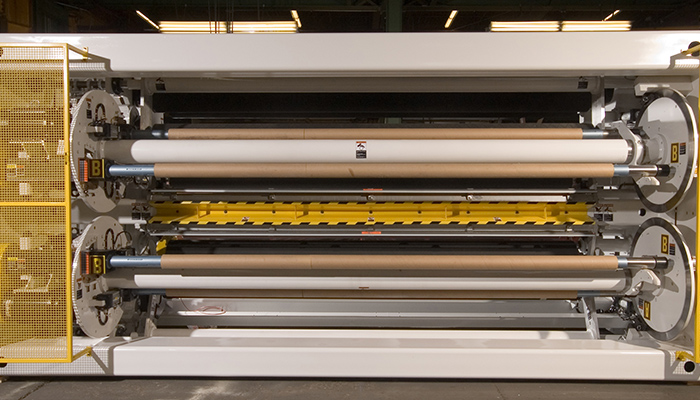

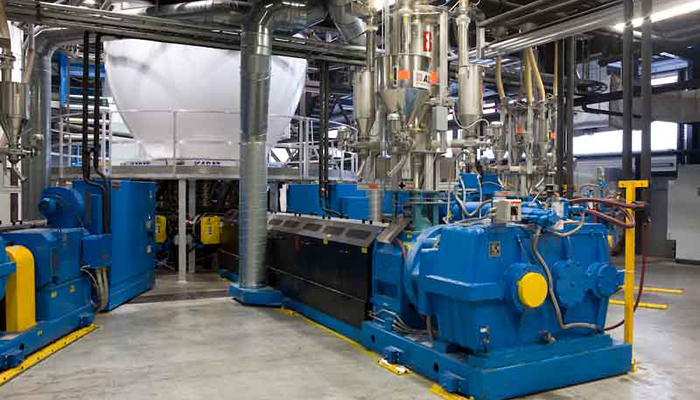

Davis-Standard supplies blown film extruders, extrusion lines and associated winders, dies and feedscrews for blown film processors around the globe. Our mono and multi-layer blown film technology is used for applications ranging from agriculture and greenhouse films, to packaging and shrink films, to stretch and collation films. Brampton Engineering, a blown film technology company for over 45 years that became a Davis-Standard company in 2018, is a leading provider of multi-layer AeroFrost® air blown and AquaFrost® water quenched film systems, film winding and many other film production solutions, particularly for food packaging.

In addition, to complete lines for co-extruded film up to 11 layers, the first water quenched film lines, and blown film lines for products up to 25m in circumference, we offer the widest range of components in the industry.

For new lines or retrofits, choose from SCD 4.0 pancake dies, Vertex side-fed cylindrical dies, Optiflow or Centrex center-fed cylindrical dies, with die lip diameters ranging from 4” to 100”.

Our portfolio of air rings includes WesJet dual lip, UpJet elevated dual lip and the newest Vector® single-inlet air ring with patent-pending Vector® dual lip for the easiest and most repeatable setups.

In addition to the proven Davis-Standard control systems, Brampton Engineering offers the ITALYCS® 5 line control system designed specifically for multi-layer blown film and AquaFrost®. Likewise, Brampton Engineering adds the FlexWin winder line to the extensive selection of winders offered by Davis-Standard.

Whether for innovative food packaging films, construction and agriculture stretch films, medical and hygiene barrier films, industrial films and bags for heavy-duty applications or flexible packaging, Davis-Standard and Brampton engineering blown film capabilities are unsurpassed.

Contact us to learn more

Industrial Films & Bags

Davis-Standard is the industry leader in developing innovative technology for large and wide blown film systems for industrial film and bag applications. There is no better blown film extruder for high output and low melt temperature than the MAC extruder with the DSB®II feedscrew. This extruder, specifically for blown film, leads to the best and most consistent melt quality (temperature uniformity to 2 degrees F and pressure variation <1%), which is necessary to achieve uniformity from large dies. Blown film die systems can oscillate up to 1.2 meters in diameter or remain stationary up to 2.1 meters in diameter. These systems produce controlled property films at wide widths with flat rolls. Typical Specifications

Applications - Industrial overwraps, jumbo bags, pallet hoods
Widths - 2 to 5 meters  / 80 to 200 inches
Line Speeds - Up to 100 mpm / Up to 350 fpm
Thickness Range - 20 to 300 micron / 0.8 to 12 mil
Finished Roll Diameter - Up to 1.5 meters / Up to 60 inches
Output - 1000 to 2300 kg/h / 2000 to 5000 pph
Coextrusion - Mono, three and five layer systems
Features - Gusseting and folding, MAC extruders, DSB® screws, Centrex dies, WesJet TPC air ring, surface and dual turret winders, small and large roll winders, full automation

Barrier Films

Davis-Standard's blown film flexible packaging solutions for high-speed converting machinery lines are unsurpassed. This is especially true in the area of barrier films where roll geometry, thickness and layer uniformity lead to faster conversion speeds on pouch lines, FFS machines and laminating lines. Uniform layers enable cost-efficient use of expensive materials, and our blown film lines have proven effective in producing economical coextruded structures. Advantages such as stationary die systems, oscillating haul-offs, and roller-collapsing frames produce flat, smooth film and rolls. Our blown film systems are also known for consistent symmetric and asymmetric films.

Typical Specifications

Applications - Barrier films
Machine Configuration - 2380 mm 7-layer / 94-inch 7-layer
Nominal Layer Structure - 25 / 10 / 10 / 10 / 10 / 10 / 25
Die Diameter - 400 to 560 mm / 16 to 22 inches
BuR - 1.8 - 3.0:1     1.8 - 3.0:1
Max Web Width - 2300 mm / 90 inches
Typical Output - 350 - 575 kg/hr / 660 - 1265 lbs/hr
Thickness Range - 20 - 200µ / 0.8 - 8.0 mil
Materials to be Processed - LD, LLD, EVA, EVOH, PA, PP, lonomer, Tie

Can Liners

Davis-Standard understands the primary goal of can liner systems is output. Rates over 25 ppi and increased uptime are trademarks of our industry-leading blown film systems. Our die systems are stationary with oscillating haul-offs so that jumbo rolls can be made for off-line converting. Other advantages include:

  • Super air-cooled MAC extruders with a high-volume suction blower concept for superior cooling and low maintenance
  • Pre-wired control panels mounted on extruder base to reduce installation time
  • DSB®II feedscrews with high output mixing
  • Vertex dies for easy operator access and excellent uniformity to <5% before auto adjustment
  • Triple lip air rings and IBC for high cooling rates and increased bubble stability
  • Collapsing frames available as wood, covered slats or roller with partial or full gussets
  • Surface winders for large roll diameters

Typical Specifications

Applications - Trash bags, kitchen bags, composting bags
Widths - 1 to 3 meters / 40 to 120 inches
Line Speeds - Up to 120 mpm / Up to 400 fpm
Thickness Range - 12 to 75 micron / 0.5 mil to 3 mil
Finished Roll Diameter - Up to 1.5 meters / Up to 60 inches
Output - 500 to 700 kg/hr / 1000 to 2000 pph
Configurations - Single, dual and quad die systems
Features - Integrator full control system, Gravimetric layer ratio control, MAC extruders, DSB® screws, Vertex dies, WesJet air ring, surface

Laminating Films

Davis-Standard is a global extrusion leader in flexible packaging with lamination lines capable of 2000 feet per minute. We understand the needs for high-speed converting machinery, especially in the area of laminating films where roll geometry and layer uniformity leads to faster speeds on converting and laminating lines. Uniform layers enable cost-efficient use of expensive materials, and our lines have been effective in producing economical coex structures. Advantages such as stationary die systems, oscillating haul-offs, and roller-collapsing frames produce flat, smooth film and rolls. Our systems are also known for consistent symmetric and asymmetric films.

Typical Specifications
Applications Extrusion coating, dry bond laminating, metalizing or solution coating machines

Widths - 1.5 to 3 meters / 60 to 120 inches
Line Speeds - Up to 120 mpm / Up to 400 fpm
Thickness Range - 12 to 50 micron / 0.6 to 2 mil
Finished Roll Diameter - Up to 1.25 meters / Up to 50 inches
Output - 500 to 1200 kg/hr  / 1000 to 2500 pph
Coextrusion - Three and five-layer systems
Features - Integrator control system, gravimetric layer ratio control, MAC extruders, DSB® screws, Vertex dies, WesJet AutoPro air ring, surface and dual turret winders, small and large roll winders, full automation

Stretch Films

Davis-Standard understands stretch wrap systems. Whether cast or blown film, our technology is applied to all components. Roll geometry and unique small roll winders efficiently allow for high production rates by providing reliable, consistent automated roll handling. Die systems are stationary up to 1-meter in diameter. Oscillating haul-offs and roller collapsing frames produce flat, smooth film and rolls. Oscillating die and stationary haul-offs are also available. These systems produce symmetric and asymmetric films.

Specific to agricultural stretch films, our technology is focused on uniform quality and thickness. This provides excellent stretch properties with consistent cling levels, strong puncture resistance, high load retention for bale integrity, low oxygen and water permeability.

Typical Specifications

Applications - Bale wrap: 500 mm / 750 mm reels
3-Layer Configuration - 90 / 150 / 90 mm / 3 1/2-inch / 6-inch / 3 1/2-inch
5-Layer Configuration - 75 / 90 / 130 / 90 / 75 mm / 3-inch / 3 1/2-inch / 5-inch / 3 1/2-inch / 3-inch
Nominal Layer Structure - 15 / 70 / 15 or 10 / 20 / 40 / 20 / 10
Die Diameter - 790 - 850 mm / 31 - 34 inches
BuR - 2.45 - 2.65:1
Max Web Width - 3300 mm / 130 inch
Typical Output - 750 - 900 kg/hr / 1650 - 1980 lbs/hr
Thickness Range - 15 - 38µ / 0.6 - 1.5 mil
Materials to be Processed - LD, LLD, mLLD, EVA, and PIB injection

Agricultural & Membrane Films

When you think of agricultural (ag) films, think Davis-Standard. We offer extensive knowledge and proven solutions for large and wide blown film for a range of agricultural applications. There is no better extruder available for high output and low melt temperature than the MAC extruder with DSB®II feedscrew. This extruder, designed for blown film applications, leads to the best and most consistent melt quality (temperature uniformity to 2 degrees F and pressure variation <1%), which is necessary to achieve uniformity from large dies. The die systems can oscillate up to 1.2 meters in diameter or remain stationary up to 2.1 meters in diameter. These blown film systems produce controlled property films at wide widths with flat rolls. Typical Specifications

Applications - Groundcovers, pond liners, mulch films, fumigation films, drop cloths, reflective films, greenhouse films, textured and smooth
Widths - Bubble circumferences from 5 to 25 meters /Bubble circumferences from 16 to 80 feet
Line Speeds - Up to 100 mpm / Up to 350 fpm
Thickness Range - .03 to 3 mm / 1.5 to 120 mil
Finished Roll Diameters - Up to 750 mm / Up to 30 inches
Output - 1,000 to 500 kg/hr / 2,000 to 10,000 pph
Coextrusion - Mono, three, five and seven-layer systems
Features - Gusseting and folding, MAC extruders, DSB® screws, Centrex dies, WesJet air ring, surface and dual turret winders, small and large roll winders, full automation

Food Packaging

Food Packaging

Brampton Engineering has specialized in multi-layer co-extrusion AeroFrost® film systems for over 45 years. The flat pancake-style SCD® 4.0 die offers not only the lowest residence times for the middle and outer layers and the fastest resin changeovers, but can also be customized with thermal isolation between layers to minimize overheating thermally sensitive resins such as EVOH in proximity to much hotter nylon layers in high-barrier film structures. Paired with the Vector® air ring and ITALYCS® control system, SCD is the most flexible die choice for making a wide range of different film structures with fast job changeovers and less frequent die cleaning.

Typical Specifications

Applications – lamination films, vacuum skin films,
Coextrusion - Three to 11 layer systems
Film Widths - 760 to 2794 mm  / 30 to 110 inches
Thickness Range - 25 to 250 micron / 1 to 10 mil
Resins – LDPE, LLDPE, HDPE, EPE, PA, EVOH, EVA, PP, PETG, ionomers, plastomers, etc.
Output – 180 to 1000 kg/h / 400 to 2200 pph

Features – SCD 4.0 die with thermal isolation, Vector single inlet air ring, FlexWIN turret winder, ITALYCS 5 blown film control system

Want to learn more? Click to Contact Us.

Lab Scale Equipment

Davis-Standard offers a comprehensive line of laboratory and pilot-scale equipment designed to meet blown film process requirements for product development, polymer research, material testing, and validation. This includes extruders, process controls, feedscrew technology, and downstream equipment. Single or multi-layer laboratory systems are available as well as individual components. Sturdy and reliable construction simulates production performance and accuracy. Advantages include:

  • Cooling towers in fixed or adjustable configurations up to 20’ elevation
  • Nip station width range from 12”-24”
  • Bubble guides available as single or multi-level
  • Collapsing frame with wooden slats or non-stick rollers
  • Air cooling rings supplied as single or dual-lip
  • Spiral mandrel dies from 1”-3”
  • Dedicated system includes complete line on common base
  • Options: lay-flat width control, web break detection, slitting and gel detection

Typical Specifications

Widths – 4”-24”
Line Speeds –100-100fpm
Thickness Range – .001”-.010”
Output – 5-50 lbs/hr

READ MORE
php
php
php
php
php
php

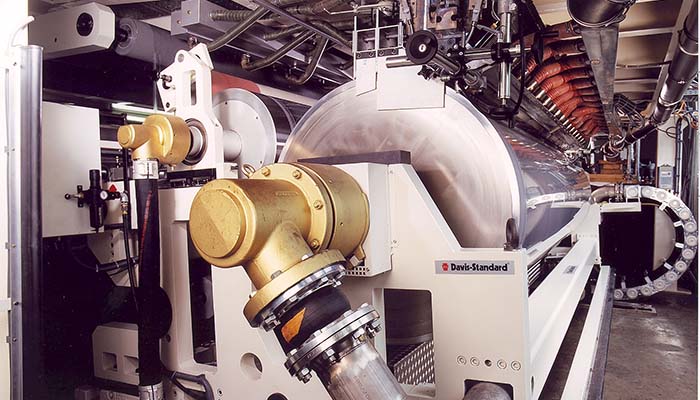

Protection, Packaging, Hygiene Films – Leading Technology for Your Cast Film Needs

We are an industry leader in cast film technology for applications in food packaging, personal care markets, stretch and cling films. Our knowledge of multi-layer cast film structures and MDO (machine direction orientation) coupled with innovative dies and winders, high-efficiency cooling rolls and superior control technology enables us to support customers worldwide.

Our reliable extruders and cast film extrusion equipment add value by consistently reducing scrap and improving processing rates. Cast films and cast embossed films processed on Davis-Standard cast film systems are known for high tensile strength and excellent barrier properties. The supply of barrier cast film lines and CPP film lines are among our areas of expertise.

Hand & Machine Wrap

We support several extruder configurations for hand and machine wrap applications. Co-extrusion systems are available to match line sizes with respect to desired layer percentages, film thicknesses and operating line speeds. We have capabilities for producing coextruded films from three to more than 30 layers (microlayers). The production of five layers using four extruders is the most common. Film forming is typically by vacuum box on a large diameter chill roll to control pre-stretch film properties. Winding systems feature fully automatic roll and core handling systems.

Line sizes are available for net finished widths as listed below with the 120-inch/3-meter, 6-up line being the most popular and flexible.

  • 80 inches / 2 meters - 4 rolls up
  • 100 inches/ 2.5 meters - 5 rolls up
  • 120 inches / 3 meters - 6 rolls up
  • 160 inches / 4 meters - 8 rolls up
  • 180 inches / 4.5 meters - 9 rolls up
  • 200 inches / 5 meters - 10 rolls up

Typically, all lines are geared in to run at speeds up to 2300 fpm/700 mpm. However, actual line speeds may be limited by resin formulation, resin quality, line size or winding system.

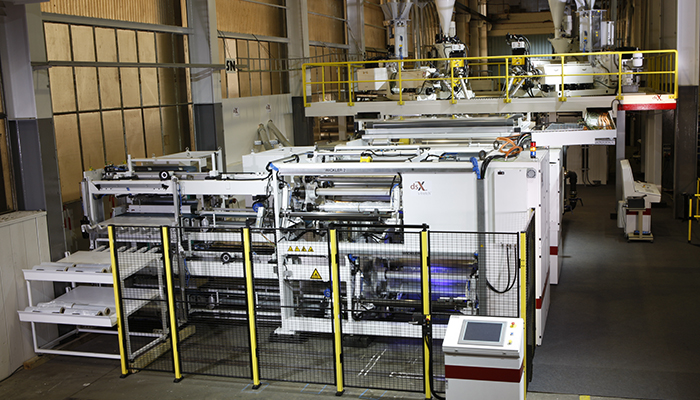

NEW TO THE INDUSTRY! The optimized dsX s-tretch™ pre-stretch cast film extrusion line is the first in-line pre-stretch system enabling customers to run thinner films at higher speeds. This line enables stretch film providers to produce consistent, high-quality pre-stretch film with greater efficiency. The two-meter wide line also has the advantage of a smaller footprint, yet allows for growth.

Typical Specifications

Net Widths  - 2 to 5 meters / 80 to 200 inches
Line Speeds - 457 to 700 mpm / 1500 to 2300 fpm
Winder - Hand and machine wrap

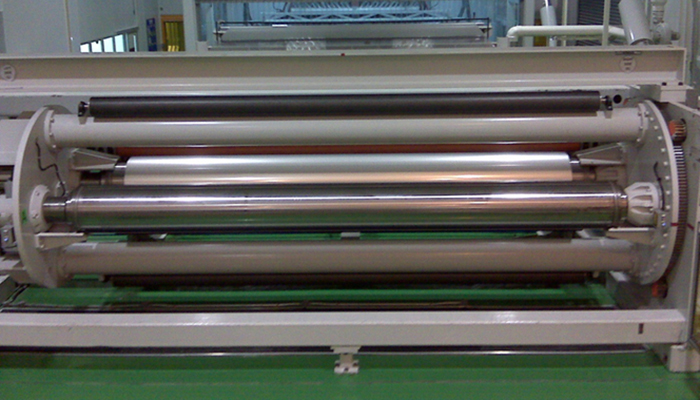

CPP: Stand-up Pouches, Candy Twist Wrap, Document Protection

Davis-Standard offers various configurations of extruders, filtration, feed-blocks and single or multi-manifold dies to produce CPP grades of lamination and metallisable cast films.

The resins are processed on Davis-Standard barrier screws, with or without melt pumps, depending on application. A unique tandem extruder configuration is available for the heavy core layer. Three and five-layer co-extrusion configurations are available using a conventional feed-block or multi-manifold die technology.

Typical Specifications

Net Widths - 2 to 5.3 meters / 6.5 to 17 feet
Thickness - 15 to 150 micron / .6 to 6 mil
Net Output - 500 to 2300 kg/hr / 1100 to 5000 lbs/hr
Speeds - 150 to 250 mpm / 492 to 820 fpm
Winding Diameter - 750 to 1200 mm / 29.5 to 47.2 inches

Barrier Films: Diapers, Disposible Garments and Liners, Shower Curtains and Tablecloths

This is a significant cast film area for Davis-Standard. Mono and coextruded systems are available as well as film-forming using the wet or dry embossing method as determined by product requirements. Repeatable embossing patterns and low-tension capabilities provide excellent winding performance. In-line slitting down to 3 inches (76mm) are possible with our advanced winding systems. Specialty cast film lines can incorporate coating or lamination of lightweight non-woven substrates. We often provide custom equipment or configurations to meet specific product requirements.

Core diameters of 3 to 6 inches (76 to 152.4mm) are possible using specially designed winding systems for all line widths. Typical line speeds of 600 to 1400 fpm (80 to 425 mpm) depending on extrusion package, formulation, film properties, embossing method and selected winding options.

End products include baby diapers, protective and masking films, disposable garments and bed sheets, pouches, PP photoprotective sleeves, shower curtains and tablecloths.

Typical Specifications

Widths - 2133 to 3353 mm / 84 to 132 inches
Line Speeds - 80 to 425 mpm / 600 to 1400 fpm
Winder - 1 meter in diameter / Up to 40 inches in diameter

Consumer and Medical Packaging

Davis-Standard offers configurations for producing flat cast barrier structures for consumer and medical packaging. Cast film systems are designed based on end-use requirements. Advantages include the processing of structures with singular or multiple layers and flexibility to incorporate enhanced barrier properties using nanotechnology. Our extruders and feedscrew designs offer excellent melt quality and thermal forming pressure stability.

Typical Specifications

Net Widths - 2 to 2.7 meters / 78.7 to 106.3 inches
Thickness - 50 to 300 micron / 2 to 12 mil
Net Output - 750 to 1600 kg/hr / 1653.5 to 3527.4 lbs/hr
Speeds - 15 to 150 mpm / 49.2 to 492.1 fpm
Winding Diameter - 750 to 1200 mm / 29.5 to 47.2 inches

Confectionary, bread, towel and tissue bags, single slice cheese film, pouch film

Within this category, our cast film lines encompass three to five extruders for producing a variety of packaging films up to seven layers. These packaging films are generally formed with a vacuum box, are corona treated have in-line slitting using bleed trims, and wound with low tension. These films also typically have a heat-seal side and a packaging-machine side where different slip levels are required.

Typical products are in the 1 to 4 mil (25 to 100 micron) range. Products include confectionary bags, bread bags, towel and tissue bags, single slice cheese film, pouch film, sugar bags, meat packaging, electrical component packaging, liquid packaging, vacuum packaging films and bag in a box film.

Typical Specifications

Widths - 2 to 4 meters / 80 to 160 inches
Speeds - 610 mpm / Up to 2000 fpm
Winder - 1 meter in diameter / Up to 40 inches in diameter

Lab Scale Equipment

Davis-Standard offers a comprehensive line of laboratory and pilot-scale equipment designed to meet cast film process requirements for product development, polymer research, material testing, and validation. This includes extruders, process controls, feedscrew technology, and downstream equipment. Single or multi-layer laboratory systems are available as well as individual components. Sturdy and reliable construction simulates production performance and accuracy. Advantages include:

  • Casting stations with width range of 8”-34”
  • Casting roll diameter of 8” or 12”
  • Single drive for casting roll and haul-off or independent drive for precision tension control
  • Hand-wheel up/down adjustment of casting roll
  • Bolt-on nip station available for laminating
  • Multiple provisions for mounting of substrate unwinds
  • Options: air knife, edge pinners, high temperature, slitting station, corona treating, casting rolls with alternate finish, on-line thickness gauge, and gel inspection

Typical Specifications

Net Widths – 4”-22”
Line Speeds –10-100fpm
Thickness Range –.001”-.010”
Winding Diameter – 24"
Output – 5-50 lbs/hr

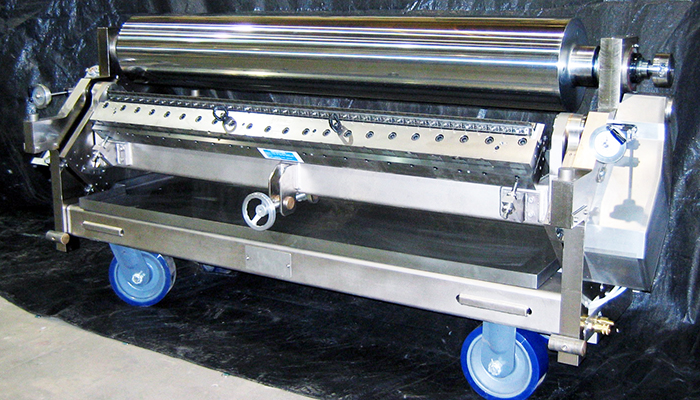

EDI® Prodigi™ Die System

 As a world class equipment supplier and preferred business partner of EDI®, Davis-Standard is pleased to be the systems integrator for the new Prodigi™ die systems. Using this die technology, converting customers have the opportunity to boost converting performance at a significant cost savings. This patent-pending motorized lip actuator system allows for faster APC control achieving spec in 3-4 times faster than thermal bolt dies.

  • Improve team safety
  • Greater energy savings
  • Optimal repeatability
  • Faster set-up speed
  • Gain additional stroke
  • Results validated

No post found

READ MORE
php
php
php
php
php
php

The Industry’s Premier Extruders

What separates a Davis-Standard extruder from the competition? Our customers will tell you it’s the unparalleled performance and durability that makes the difference. Our extruders are so reliable that some are still operating after 50 years of continuous service. This track record combined with high output rates and a rapid return on investment make Davis-Standard extruders the workhorses of the industry.

From single and twin screw extruders to specialty, reclaim, medical and elastomer extruders, the depth and availability of our extruder offering is what makes Davis-Standard the global extrusion leader. We are also recognized for our coextrusion technology, supporting both vertical and horizontal coextrusion configurations.

Regardless of application or location in the world, we have the extruder to suit your requirements and budget.

Contact us to learn more

Elastomer Extruders

Cold Feed (DSR) Rubber Extruders

  • Available in 2 1/2 inches (65mm) to 6 inches (150mm) with L/D ratios of 10.5:1, 12:1, 15:1, 17:1 and 20:1
  • Equipped with unique pneumatic roller feeder to compensate for feed strip variations
  • Improved output stability
  • Multi-zone temperature control via double cast aluminum heater cooler

Gear Extruders

  • Available in 70, 120 and 150mm sizes and with 200, 300 and 370mm screen diameters
  • Two-roll feeder for single and multiple strip feeding
  • Hydraulic head clamp
  • Three temperature control zones
  • Touchscreen PLC control
  • Dual head capability
  • Dancer trim control and feed strip detectors

Cold Feed Rubber Silicone Extruders

  • Available in 1 1/2 inches (40mm) to 8 inches (200mm) with L/D ratios of 10.5:1 and 7:1
  • Available as a silicone strainer, with a vertical crosshead, and in Lo-Boy configurations
  • Unique pneumatic roller feeder to compensate for feed strip variations
  • Optional stainless steel hopper with sight glass for pellet stock capability

Multipurpose Cold Feed (DSRE) Rubber Extruders

  • Available 1 1/2-inch (40mm) to 8 inches (200mm) with L/D ratios of 20:1
  • Equipped with unique pneumatic roller feeder to compensate for feed strip variations
  • Multi-zone temperature control via double cast aluminum heater coolers
Single Screw Extruders

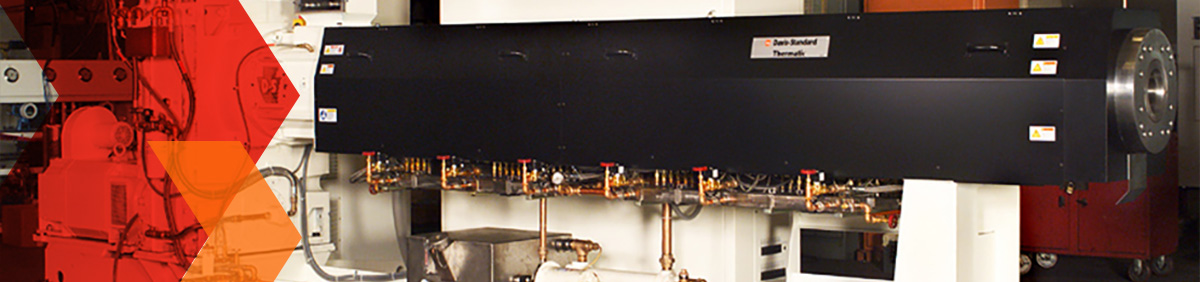

Thermatic® Extruders

  • Diameters: 1-1/2-inch to 12-inch (40mm-305mm)
  • Top of the line for all polymer requirements
  • Air or water cooled as standard
  • Integral or free-standing control panel
  • Double reduction gearbox with hardened gears available
  • Pressure lubrication on gearbox

Super Blue® Extruders and EuroBlue® Extruders

  • Diameters: 2-inch (50mm), 2-1/2-inch (65mm), 75mm, 3-1/2-inch (90mm)
  • Standard cost-effective design
  • Double reduction gearbox
  • Air cooled
  • Control panel mounted on base
  • Delivery as quick as two weeks from the order date

Groove Feed Extruders

  • Diameters: 2-inch to 6-inch (50mm-150mm)
  • 36:1 effective L/D ratio
  • High output for polyolefin materials
  • Double reduction gearbox
  • Pressure lubrication on gearbox

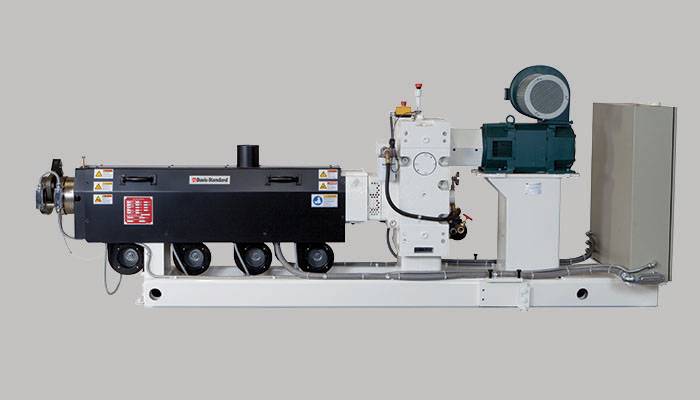

HPE-Horizontal Extruders

  • Diameters:3/4-inch (20mm), 1-inch (25mm), 1-1/4-inch (32mm), 1-1/2-inch (38mm) & 1-3/4-inch (45mm)
  • Caster mounted for portability
  • Double reduction gearbox
  • Compact design
  • Integral control panel mounted on base

HPE-Vertical Extruders

  • Diameters: 3/4-inch (20mm), 1-inch (25mm), 1-1/4-inch (32mm), 1-1/2-inch (38mm) & 1-3/4-inch (45mm)
  • Utilized in coextrusion applications
  • Motorized and manual position available
  • Vertical design for space consideration
  • Control panel mounted on base

MEDD Extruders

  • Diameters: 3/4-inch (20mm), 1-inch (25mm)
  • (40mm)
  • Direct drive motor
  • Replaceable feed section liner
  • Compact design for medical applications
  • Interchangeable barrel liners

Thermatic® High-Speed Extruder

  • Maximum Drive Power: 600 HP
  • Maximum Speed: 1200 RPM
Twin Screw Extruders

Gemini® Conical (GC) Twin Screw Extruders

  • Available GC-40: 1.6/3.4-inch (40/86mm), GC-61: 2.4/5.1-inch (61/130mm), GC-65: 2.5/5.1-inch (65/165mm)
  • Low rpm screws with internal sealed water-cooling systems
  • Rugged, high-performance gearbox
  • Flood feed capacity
  • High-efficiency Thermafin air-cooled barrel heaters and sealed
  • Water-tempered screws

Gemini® Parallel (GP) Twin Screw Extruders

  • Models: GP-94, GP-114, GP-140
  • Low RPM design
  • High torque gearbox
  • Equipped with a control cabinet and drive motor mounted on a common base
  • Preheater available on GP-114 and GP-140 models
Compounding & Reclaim Extruders

Ram Stuffer Extruders

  • Diameters: 3 1/2-inch (90mm), 4 1/2-inch (115mm), 6-inch (150mm), 8-inch (200mm)
  • Designed for reclaiming low bulk density feedstocks
  • Pneumatic ram to stuff material into the screw
  • Extra large feed throat to maximize feeding in low bulk density material

Scrapper® Dual Diameter Extruders

  • Extra large feed throat and feed assist components for added efficiency
  • Widely used ram stuffer and crammer extruders available
  • Models: 350/600 (Process/Feed), 450/800 (Process/Feed), 650/1000 (Process/Feed)
  • Ideal for processing scrap in web form directly from rolls, low or high bulk density material
  • Feed assist component eliminates cost of shredding, grinding, and densification

Hot Melt Extruders

  • A throat opening that is 12 to 14 times the size of standard throat openings
  • Capable of batch, continuous, or rope feeds
  • L/D that is designed for specific applications
  • Vented barrel available to assist with issues related to volatiles

Scrap Reclaim Extruder

  • Diameters: 3 1/2-inch (90mm), 4 1/2-inch (115mm), 6-inch (150mm)
  • Gear reducer, feed section, barrel and drive motor are mounted to a rugged base
  • Aggressive feedscrew designs for increased production rates
  • Barrels are bimetallic lined for long wear

No post found

READ MORE
php
php
php
php
php
php

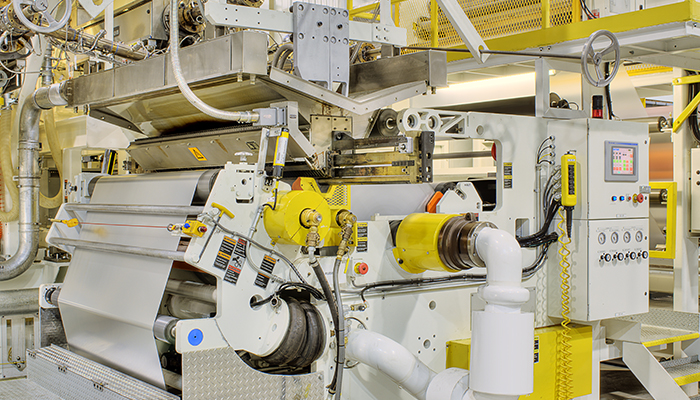

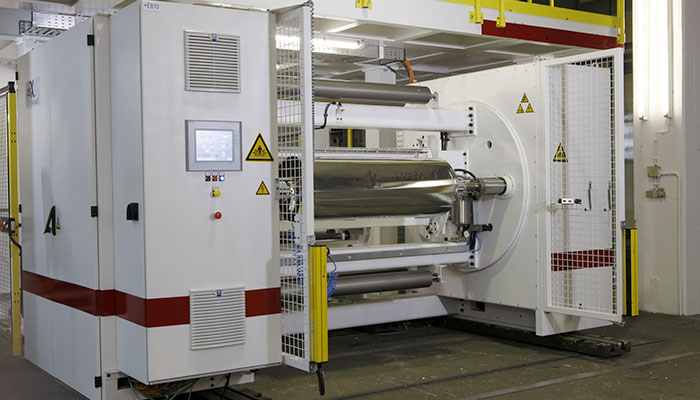

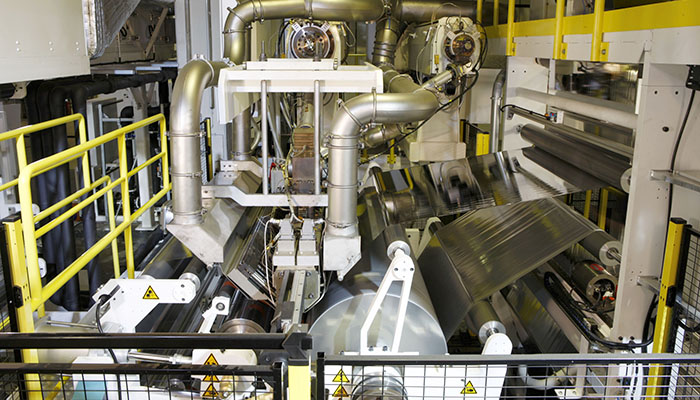

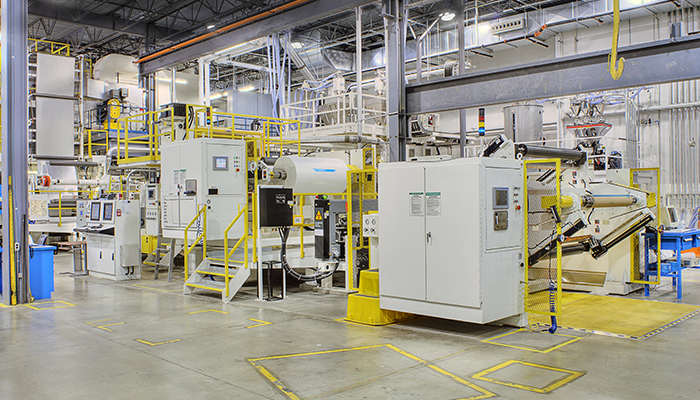

Versatile and Efficient Extrusion Coating

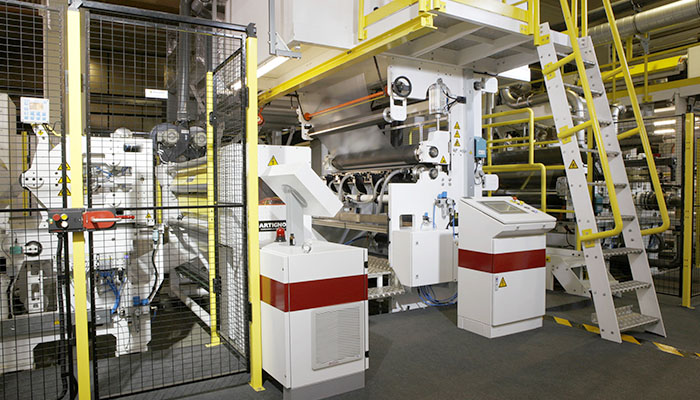

Davis-Standard’s extrusion coating and laminating expertise is second to none. With the industry’s most versatile equipment platforms, we deliver cost-effective extrusion coating packages to support construction, consumer products and packaging industries.

Our extrusion coating machinery fulfills even the most demanding flexible packaging, non-wovens, paper and board coating and laminating applications. This includes everything from laboratory-size systems for R&D to five-meter-wide systems for industrial materials.

We’re innovators in automatic profile control (APC), deckle and die options, multi-coating solutions, web handling, transfer unwinds and winders. Quality, efficiency and value enable us to improve coating and laminating processes for customers worldwide.

Contact us to learn more

Flexible Packaging

Our extrusion coating solutions for flexible packaging offer the best and most innovative technology available. We also engineer our systems to be cost-effective and efficient. Equipment advantages include shafted or shaftless unwinds and winders, material handling, single and double direction turrets with automatic splicing and transfer systems. We also offer the latest screw designs and control technology to support your process. Our liquid coating product line augments these capabilities by supplying the latest in priming and drying so that the highest levels of adhesion can be achieved. In addition, liquid coating and laminating equipment for adhesive or dry-bond lamination could be added to the extrusion coating and laminating line to further expand its capabilities. We have relationships with the major vendors of corona discharge equipment worldwide, giving us the ability to seamlessly integrate their treaters into our flexible packaging extrusion coating and laminating lines.

Typical Specifications

Applications - Lidding stock, candy wrappers, snack food bags, medical packaging, condiment packs, soup sachets, toothpaste tubes, cable wrap, lamination, films
Widths - 500 to 2000 mm / 20 to 80 inches
Line Speeds - 100 to 750 mpm / 300 to 2500 fpm
Tension Range - 35 to 350 n/m / 0.2 to 2.0 pli
Thickness Range - 12 to 100 gsm / 0.5 to 4 mils
Finished Roll Diameter - Up to 1250 mm / Up to 50 inches
Extruder Output - Up to 1000 kg single extruder, up to 1850 kg co-extrusion arrangement (three extruders) / Up to (2200 lbs single extruder, up to 4000 lbs co-extrusion arrangement (three extruders)
Features - Wide range of line equipment solutions to suit customer's requirements and budgets, latest controls systems, full lines and systematic upgrade/retrofits

Paper Coating & Laminating

Davis-Standard’s extrusion coating technology for paper coating and laminating is widely used throughout the industry. Our systems support the ability of our customers to produce quality products as efficiently as possible. Advantages of our technology include shaftless turret unwind and winder designs, superior screw designs and control technology. To augment these capabilities, our liquid coating group supplies the latest in adhesion enhancing priming, logo printing and web drying. We also have relationships with major global vendors of corona discharge equipment and flame treaters with the ability to seamlessly integrate their units into our extrusion coating and laminating lines. For high-speed lines, ozone can be introduced immediately into the lamination nip.

Typical Specifications

Applications - Sugar pouch, roll wrap, ream wrap, header stock, insulation facing, cement bags
Widths - 1500 to 3000 mm] / 60 to 120 inches
Line Speeds - 300 to 610 mpm / 1000 to 2000 fpm
Web Thickness Range - 10 to 150 gsm / 6 to 100 lbs / 3000 ft2
Finished Roll Diameter - Up to 1800 mm, depending on core size Up to 72 inches, depending on core size
Extruder Output - Up to 1000 kg single extruder, up to 1850 kg in co-extrusion arrangement (three extruders) Up to 2200 lbs single extruder, up to 4000 lbs in co-extrusion arrangement (three extruders)
Features - Wide range of line equipment solutions to suit customer's requirements and budgets, latest controls systems, full lines and systematic upgrade/retrofits

Board Coating & Laminating

Davis-Standard’s extrusion coating technology is the gold standard in the board coating business as proven by a long and successful track record of installations worldwide. Our unwind and winder sections are shaftless turret designs. Winders are supplied in the single drum horizontal rail style. For loading and unloading large paper rolls, we can easily integrate existing material handling processes. We also offer superior control systems and feedscrew designs. To augment these capabilities, our liquid coating product line includes the latest in adhesion enhancing priming, logo printing and web drying. We have relationships with all of the major vendors of flame treaters, making it possible to seamlessly integrate their units into our board extrusion coating and laminating lines. For high-speed lines, ozone can be introduced immediately into the lamination nip. For applications where foil or film substrates are laminated to the board, high-speed foil unwinds are capable of splicing 5 to 9 micron (0.002-0.0035 inches) to maintain process speed.

Typical Specifications

Applications - Aseptic packaging, paper cup and plate stock, decorative boxes, cigarette boxes, milk and juice cartons, ovenable boards, beer carriers, pet food boxes
Widths - 1200 to 3500 mm / 48 to 140 inches
Line Speeds - 300 to 650 mpm / 1000 to 2150 fpm
Tension Range - 175 to 1750 n/m / 1 to 10 pli
Finished Roll Diameter - Up to 3000 mm depending on core size 120 inches, depending on core size
Extruder Output - Up to 1000 kg single extruder, up to 2750 kg in co-extrusion arrangement (three extruders) Up to 200 lbs single extruder, up to 6000 lbs in co-extrusion arrangement (three extruders)
Features - Wide range of line equipment solutions to suit customer's requirements and budgets, latest controls systems, full lines and systematic upgrade/retrofits

Fabric Scrim & Non-Wovens

We supply specialty equipment designed to handle the required substrates using mono or coextrusion coating with unique pre-heating, winding and unwinding equipment. These components are application specific to meet process needs. Various slitting systems for edge and in-line slitting are also available.

Typical Specifications

Line Sizes - 2 to 4 meters wide / 80 to 160 inches wide
Gear-In Speeds - 150, 300 and 450 mpm / 500, 1000 and 1500 fpm
Typical Products - Sacks, bags, tarps, gowns, diapers, breathable laminates

Aseptic Packaging from ER-WE-PA GmbH (Germany)

Davis-Standard is the global market leader in Aseptic packing film, providing best-in-class solutions for quick changes, waste reduction and precision web handling. We tailor systems to address diverse structures, regulatory and business needs. And it’s all backed by regional after-sale support and service.

Typical Specifications

  • Triplex extrusion coating and laminating line for paper, aluminum foils and/or film
  • Surface treatment on both sides of the board
  • Machine line speed - 350, 450, 600, or 800 m/min
  • Maximum web width - 1350, 1650, 1900 mm
  • Maximum roll diameter for paper - 1600 up to 2000 mm
  • Shaftless unwind and winder
  • Web tension range depending on substrate and width
PPF Film

Paint protection film (PPF) is a growing market segment. This thermoplastic urethane (TPU) base “self-healing” film is ideal for protecting surfaces in automotive, aerospace and electronic applications. TPU films are formulated to provide advantages such as abrasion resistance, impact resistance, puncture resistance, hardness, optical clarity, thermal protection and more.

A typical PPF structure, consisting of a 2-mil release liner, mounting adhesive, TPU film, self-healing coating and 2-mil protective film, is manufactured in a two-pass operation. Davis-Standard is equipped to supply an entire PPF system including the extrusion and solution coating lines. The line consists of components such as extruder, controls, turret winder/roll changer, turret unwind, web cleaner, cartridge coater, roll support dryer, and laminator designed per customer requirements. Davis-Standard also offers equipment audits and consultation for a customer’s existing machine set-up to determine what is needed to process a wider range of materials. Laboratory trials determine the quality of new structures, outputs, process parameters, and the feasibility of adding PPF capabilities.

Typical Specifications

Applications – Surface protection, industrial specialties, consumer electronics, transportation
Widths – 62 to 74 inches (1,575 to 1,880mm)
Thickness – 5 to 12 mils
Materials – TPU

EDI® Prodigi™ Die System

 As a world class equipment supplier and preferred business partner of EDI®, Davis-Standard is pleased to be the systems integrator for the new Prodigi™ die systems. Using this die technology, converting customers have the opportunity to boost converting performance at a significant cost savings. This patent-pending motorized lip actuator system allows for faster APC control achieving spec in 3-4 times faster than thermal bolt dies.

  • Improve team safety
  • Greater energy savings
  • Optimal repeatability
  • Faster set-up speed
  • Gain additional stroke
  • Results validated

No post found

READ MORE
php
php
php
php
php
php

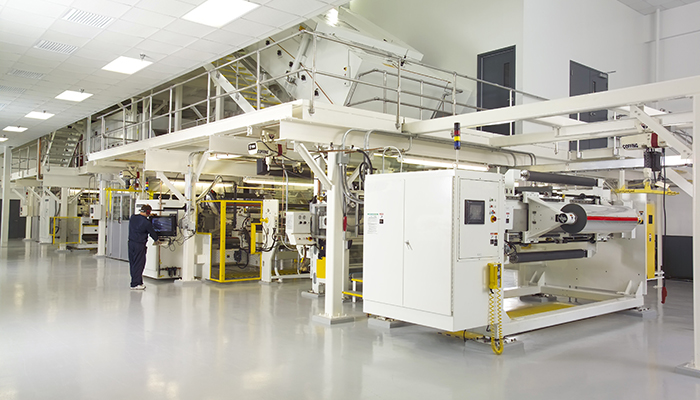

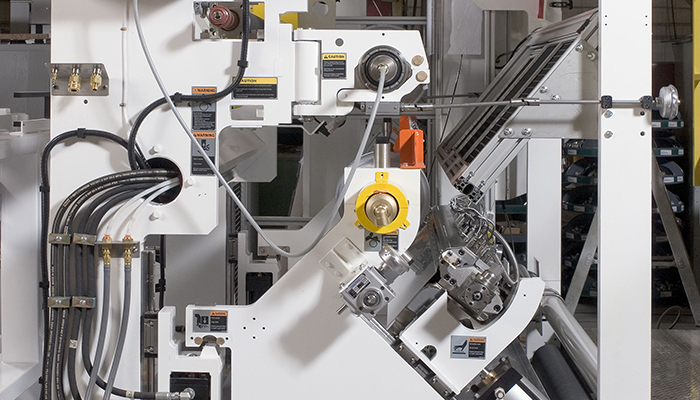

Liquid Coating that Optimizes Efficiency

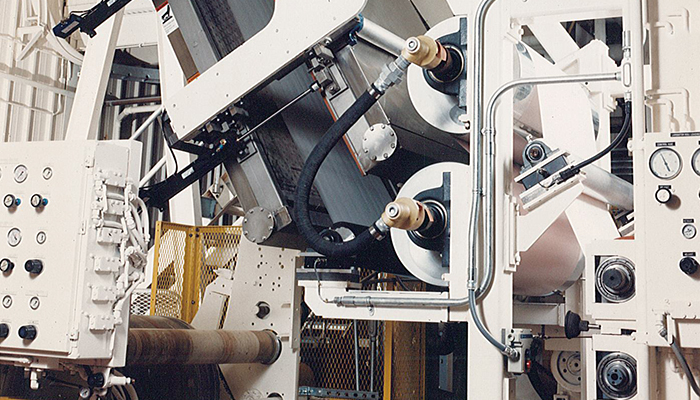

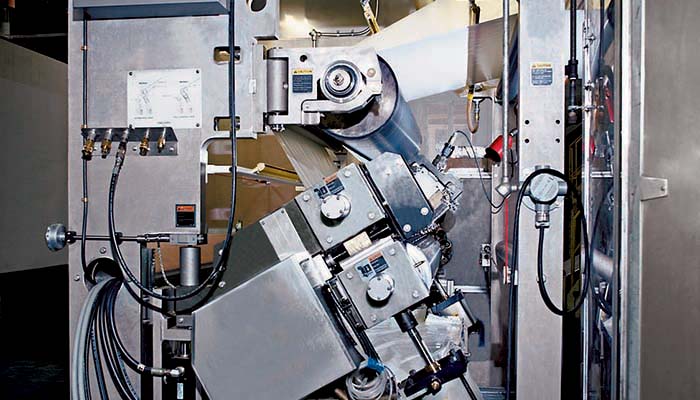

Davis-Standard’s liquid coating systems are used throughout the world for tapes and labels, silicone-coated products and in specialty coating markets. With more than 50 different standard and custom liquid coating products, we provide profitable solutions for the building and construction, automotive and medical industries.

When it comes to achieving the right viscosity, emulsion, pH and adhesive characteristics for your liquid coating applications, you need a proven and trusted partner. Davis-Standard’s experienced engineers consider multiple variables when building lines for specialty-coated products — ensuring the best solution for your liquid coating specifications.

Regardless if your process demands using film or paper substrates and applying ultra-thin or thick coatings, Davis-Standard’s liquid coating solutions support process improvement and production efficiency in cleanroom environments, slow or high-speed applications, or precision coating and drying technology.

Contact us to learn more

Tapes and Labels

We're constantly asking ourselves what machinery is needed to make the very best tapes and labels? And how do we do it more cost-effectively than anyone else? We know the difference between a good product and a great product: curl-free quality, uniform lamination, and dryness of the end product. We appreciate clear-to-core winding technology that lets you ship right off the winder, as well as no fold-back splicing and zero telescoping during indexing.

That’s why our tape and label experience and capabilities include clean room applications, laminations, low to high-speed applications, and narrow to wide applications. We pride ourselves on efficiency with increased line speeds and shortened dryer lengths of up to 30 percent thanks to innovative nozzle systems. Precise tension control of line sequences allows our customers to run higher line speeds with better quality control. We work with you to get the job done right.

Typical Specifications

Widths - 1016 to 2794 mm / 40 to 110 inches
Line Speeds - 15 to 457 mpm / 50 to 1500 fpm
Tension Range - 9 to 136 kg / 20 to 300 lbs
Winder Diameter - 508 to 1270 mm / 20 to 50 inches

Silicone Coating

The release liner market is rapidly expanding throughout the world. Thanks to our close relationship with major silicone suppliers, we're able to build equipment to meet demanding market trends. Whether your substrate is film or paper, our team understands which coating methods will produce the highest quality coated products and which winding methods will produce the best wound rolls with minimal downtime. Factors such as eliminating dust in the dryers and including mist removal systems are part of our commitment to customers.

We continually develop new technologies to support process improvement and efficiency. Our Steamex moisturizing system eliminates moisture and curl problems, leading to increased line speeds and paper quality. With our Super T winder, silicone-coated products can be processed at speeds of 3000 fpm (900 mpm) while reducing telescoping associated with conventional turret indexing. These are just a few examples of how our silicone lines are built to work for you.

Typical Specifications

Widths - 1016 to 2794 mm / 40 to 110 inches
Line Speeds - 15 to 914 mpm / 50 to 3000 fpm
Tension Range - 9 to 136 kg / 20 to 300 lbs
Winder Diameter - 508 to 1270 mm / 20 to 50 inches

Specialty & Custom Coating

When building a line for specialty-coated products, considering multiple variables is the nature of the business. Some applications demand a clean room atmosphere that requires nickel and chrome plating for high surface quality. Others call for quick changeovers or precision coating and drying technology. Whether you're in the battery, metalized, graphic arts, presentation media, barrier or some other specialized coating segment, you can count on Davis-Standard's knowledgeable coating experts to work with you to develop the ideal specialty line for your process.

No matter what your requirements call for - complex coating lines with multiple cartridge coaters or more simple lines with a dedicated coater – we develop solutions that can be up and running quickly and profitably. Our knowledge of dryer nozzle arrangements, different substrates and precision applications is assurance that you will achieve the results your business demands.

Typical Specifications

Widths - 1016 to 2794 mm / 40 to 110 inches
Line Speeds - 15 to 914 mpm / 50 to 3000 fpm
Tension Range - 9 to 136 kg / 20 to 300 lbs
Winder Diameter - 508 to 1270 mm / 20 to 50 inches

PPF Film

Paint protection film (PPF) is a growing market segment. This thermoplastic urethane (TPU) base “self-healing” film is ideal for protecting surfaces in automotive, aerospace and electronic applications. TPU films are formulated to provide advantages such as abrasion resistance, impact resistance, puncture resistance, hardness, optical clarity, thermal protection and more.

A typical PPF structure, consisting of a 2-mil release liner, mounting adhesive, TPU film, self-healing coating and 2-mil protective film, is manufactured in a two-pass operation. Davis-Standard is equipped to supply an entire PPF system including the extrusion and solution coating lines. The line consists of components such as extruder, controls, turret winder/roll changer, turret unwind, web cleaner, cartridge coater, roll support dryer, and laminator designed per customer requirements. Davis-Standard also offers equipment audits and consultation for a customer’s existing machine set-up to determine what is needed to process a wider range of materials. Laboratory trials determine the quality of new structures, outputs, process parameters, and the feasibility of adding PPF capabilities.

Typical Specifications

Applications – Surface protection, industrial specialties, consumer electronics, transportation
Widths – 62 to 74 inches (1,575 to 1,880mm)
Thickness – 5 to 12 mils
Materials –  TPU

No post found

READ MORE
php
php
php
php
php
php

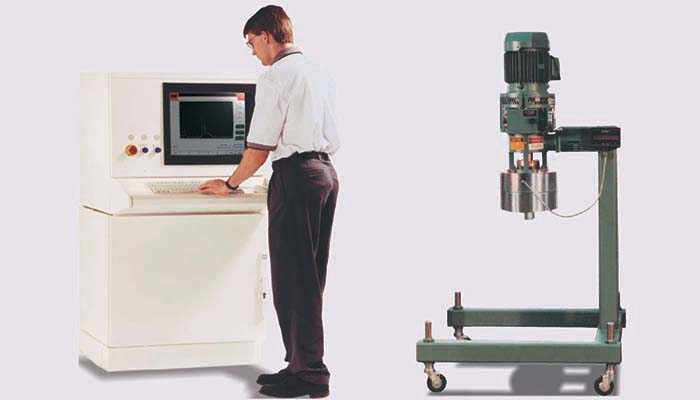

Pelletizing Precision and Consistency

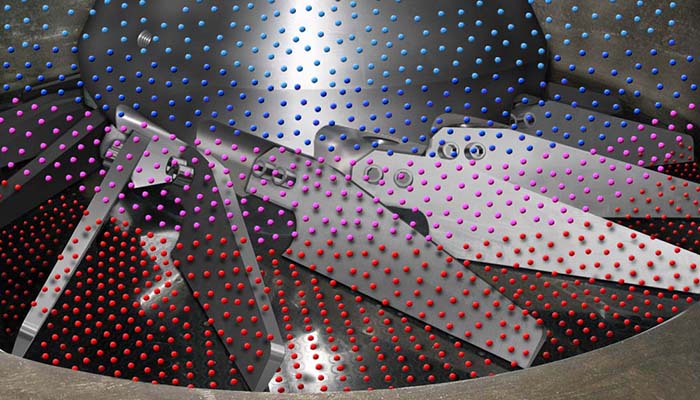

Davis-Standard helps customers achieve high quality pellets through field-tested experience in underwater pelletizing, water ring pelletizing and air ring pelletizing processes. Our modular extrusion and pelletizing solutions are ideal for conventional, micro and macro pellet production.

Our engineers address key factors in pelletizing equipment design to ensure consistent melt temperature, melt flow index and melt pressure throughout the pelletizing process. We also offer more model sizes and multiple options for screen changers, heating systems, dryers, and water systems to ensure greater efficiency, value and quality.

Contact us to learn more

How can we help you?

Extrusion Feed Devices

Modular Davis-Standard pelletizing systems can be designed to receive solid or molten feed material for all polymer types and processes. Selecting the best and proper extrusion equipment technology to meet your virgin resin production, compounding, scrap reclaim or other processing needs is an important factor for profitability. Our systems come in a full range of model sizes and equipment types, giving you the freedom to build your pelletizing line around the components needed for your requirements.

All subsystem and support equipment such as screen changers, diverter valves, heating systems, classifiers, dryers, water systems, control panels can be included to provide a total system concept. Product can be fed from a reactor, holding vessel, single or twin screw extruder, continuous mixer, mill, gear pump or other feed devices. Additives can be incorporated and mixed with the main product through a feed port, injection pump, or satellite side arm extruder. Degassing of volatiles or product filtration may be included where required. The product is then discharged to the downstream pelletizing equipment on a continuous basis. The end result is superior quality, highly reliable machine lines that turn pellets into bigger profits for you.

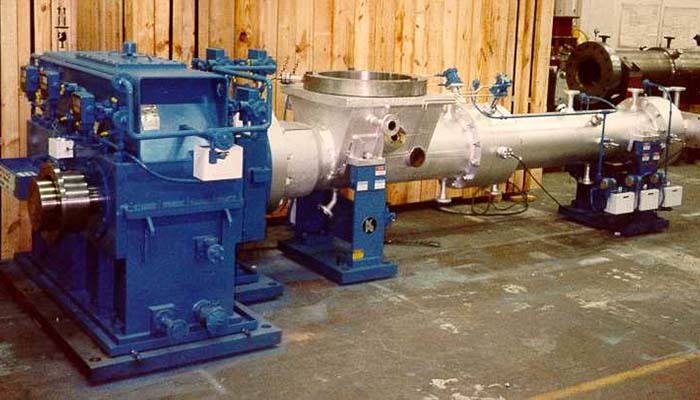

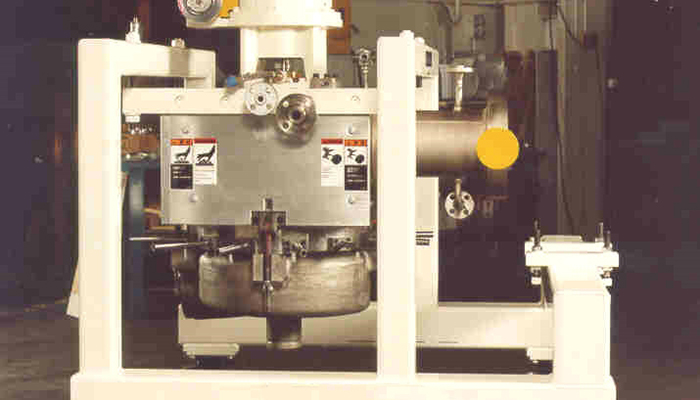

Underwater Pelletizing Systems

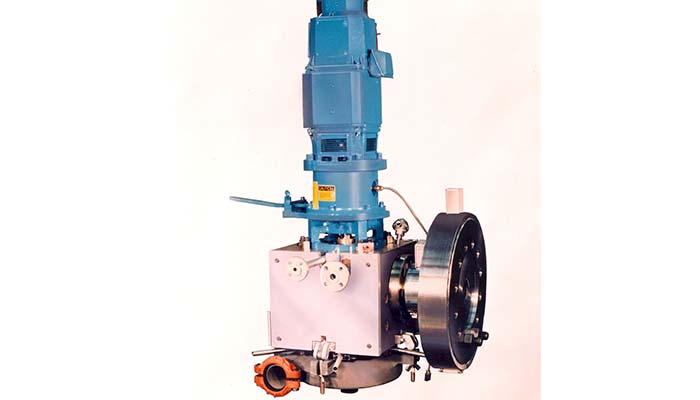

Davis-Standard’s universal underwater system – the Pelletor® - offers everything you need to produce high-quality, uniform pellets. We offer several options to conventional, micro or macro pellet production using unique designs. These designs assure perfect knife-to-die plate alignment regardless of thermal or mechanical variation of the feed equipment. Very broad product viscosity ranges may be easily achieved.

The Pelletor works in either underwater, water or air ring cutting methods or both. Solution oriented options and features allow ease of operation, highest processing performance, and highest product quality. Since we offer a full range of model sizes, you have the freedom to build your pelletizing line around the system components that meet your exact criteria. All subsystem and support equipment such as screen changers, diverter valves, heating systems, classifiers, dryers, water systems and control panels may be included to provide a total system concept. The end result is superior quality and highly reliable machine lines that turn pellets into bigger profits for you.

Typical Specifications

Size Max No. Holes Typical Drive Power Nominal Thruput Rates/Hour
0.5 40 10 hp 7.5 kw 1,200 lbs 545 kgs
1 151 10 hp 7.5 kw 4,530 lbs 2,054 kgs
2 204 15 hp 11.2 kw 6,120 lbs 2,775 kgs
2x 420 15 hp 7.5 kw 7,200 lbs 3,264 kgs
3.5 270 20 hp 15 kw 8,100 lbs 3,680 kgs
3 270 20 hp 15 kw 8,100 lbs 3,680 kgs
3x 372 20 hp 15 kw 11,160 lbs 5,060 kgs
6 714 50 hp 37 kw 21,400 lbs 9,710 kgs
6x 840 75 hp 56 kw 25,200 lbs 11,424 kgs
8 992 100 hp 75 kw 29,760 lbs 13,520 kgs
8x 1352 100 hp 75 kw 40,560 lbs 18,436 kgs
10 1880 125 hp 93 kw 56,400 lbs 25,568 kgs
10x 2320 150 hp 112 kw 69,600 lbs 31,552 kgs
12 2368 200 hp 150 kw 71,040 lbs 32,290 kgs
12x 2784 200 hp 150 kw 83,520 lbs 37,964 kgs
14 2920 250 hp 187 kw 87,600 lbs 39,820 kgs
14x 3600 250 hp 187 kw 108,000 lbs 49,090 kgs
16 4200 300 hp 224 kw 126,000 lbs 52,273 kgs

NOTE: Die plate orifice hole size has a great impact on output of any given type of polymer produced on a given machine size. The above chart is based on 30 lbs (13.6 kgs) per hour per hole.

Water and Air Ring Pelletizing Systems

Davis-Standard’s universal underwater system – the Pelletor® offers everything you need to produce high-quality, uniform pellets. We offer several options to conventional, micro or macro pellet production using unique designs. These designs assure perfect knife-to-die plate alignment regardless of thermal or mechanical variation of the feed equipment. Very broad product viscosity ranges may be easily achieved.

The Pelletor works in either underwater, water or air ring cutting methods or both. Solution oriented options and features allow ease of operation, highest processing performance, and highest product quality. Since we offer a full range of model sizes, you have the freedom to build your pelletizing line around the system components that meet your exact criteria. All subsystem and support equipment such as screen changers, diverter valves, heating systems, classifiers, dryers, water systems and control panels may be included to provide a total system concept. The end result is superior quality and highly reliable machine lines that turn pellets into bigger profits for you.

Typical Specifications

Size Max No. Holes Typical Drive Power Nominal Throughput Rates/Hour
0.5 40 5 hp 3.75 kw 1,200 lbs 545 kgs
1 87 5 hp 3.75 kw 2610 lbs 1,186 kgs
2 204 10 hp 7.5 kw 6,120 lbs 2,775 kgs
2x 240 10 hp 7.5 kw 7,200 lbs 3,264 kgs
3.5 270 15 hp 11.2 kw 8,100 lbs 3,680 kgs
3 270 15 hp 11.2 kw 8,100 lbs 3,680 kgs
3x 372 15 hp 11.2 kw 11,160 lbs 5,060 kgs
6 500 20 hp 15 kw 15,000 lbs 6,820 kgs
6x 810 30 hp 22.4 kw 24,300 lbs 11,016 kgs

NOTE: Die plate orifice hole size has a great impact on output of any given type of polymer produced on a given machine size. The above chart is based on 30 lbs (13.6 kgs) per hour per hole.

No post found

READ MORE
php
php
php
php
php
php

Flexible and Customized Extrusion Control Solutions for Every Process

The brain of the extruder drives your operation and smarter process controls make a huge impact on the bottom line. That is why every system in Davis-Standard’s full line of process controls is operator-friendly, efficient and reliable. From discrete to full supervisory control, our control systems are engineered in-house to ensure quality and value.

Davis-Standard’s proven systems do the thinking for you about systems integration, temperature control and process controls.

Contact us to learn more

Integrator Pro+™

The Integrator Pro+ is the successor to Davis-Standard’s existing Integrator Pro human-machine interface (HMI) for high-level blown film, cast film, extrusion coating, drying, solvent, and aqueous coating processes. This system supports the DS Activ-Check digital transformation platform, which offers a powerful suite of analytical tools, cloud and local data storage options, and process and equipment technology algorithms.

The Integrator Pro+ delivers all the valued features of the previous version such as recipe recall, intuitive interface and control functions, custom reporting and line drive functionality, while further facilitating user-friendliness, mobility and process efficiency outcomes.

Advantages include:

  • Opportunity to integrate DS Activ-Checkdigital transformation tool
  • Central control of all production parameters
  • Process data analysis and assistance with overall equipment effectiveness (OEE)
  • Compatibility with obsolete controls installed on legacy Davis-Standard machinery
  • Increased storage, troubleshooting, and analysis capability
    • Process data trending increased to two years (Integrator Pro is one year)
    • Minimum of 10 trending screens (Integrator Pro is five years)
    • Minimum of last 1,000 events (Integrator Pro is 500 events)
  • Ease of use and navigation with an intuitive HMI
    • Increased user-friendliness
    • Additional modes of viewing (mobility)
    • Improved graphics
    • Streamlined visual displays of relevant process information
    • Safety overview screen illustrating status of imbedded safety devices to aid in diagnostics and troubleshooting
  • Omni situational awareness for seamless and secure portability of live information and controls to tablets and/or smartphones
  • Carryover of all Integrator Pro features including:
      • Recipe recall
      • Temperature, pressure, and drive controls
      • Custom reporting
      • Multi-zone tension and splice tracking for winder and unwind
      • Material handling and blending interface
      • Dyer interface and control
      • Line drive functionality
Integrator PRO

This innovative control system combines total line control and data monitoring into one multi-functional information center. It is specifically designed for high-level converting processes encompassing cast film, blown film, extrusion coating, solvent and aqueous coating and drying. The features are many!

  • Provides access to all machine functions including the temperature controller, PLC, and line drives interfaces
  • Supervisory control that integrates all converting machine line components into a single user-friendly operator interface, connecting:
    Unwinds
    Winders
    Coaters and dryers
    Extruders
    Laminators and cast sections
    Water recirculation systems
    Resin feed and blenders
    Web guides
    Treaters
    Gauges
  • Graphics based, operator-friendly touch-screen interface with the keyboard to see the entire process at a glance
  • Line run interlocks and diagnostics clearly identified to help the operator get the line running quicker
  • Historical data tracking and alarm event logging help in troubleshooting product quality and uniformity problems, as well as tracking machine performance (Provides the operator with a single location to quickly locate and identify a machine or process problem.)
  • Recipe management for a large number of line setup parameters to be stored and reused for quick and easy start-ups and product changeovers
  • Process reports and screen prints that allow accurate documentation
  • Multiple languages option for access to the language of choice by pressing a button
  • System security and system backup keep the equipment up and running
  • System networking
  • Multiple systems networked on one line
  • Multiple lines networked in one plant
  • Multiple plants networked around the world
  • Data available anywhere.
  • Standard PC computer hardware, designed for Microsoft®
    Windows® XP and
  • Wonderware software engine
  • Phone line and/or Internet access
Integrator-C

This control system offers a highly functional, easy-to-use, single point control and data center for converting applications. It is also the direct replacement for the Egan CMR system. As with the CMR, it includes a drives control interface, temperature control and gauge control. Advantages of the Integrator include:

Recipe management
Historical data trending
Alarms

Other upgrades for this system include:

Drives upgrades: For drive systems older than 12 to 15 years we offer:

  • A DC drives upgrade with re-use of existing motors.
  • New AC drives and motors for greater long-term savings.

Controls Upgrade: For machine lines with PLC’s older than 15 to 20 years we offer:

  • PLC upgrades to increase machine performance and minimize downtime.
  • More features and functionalities to provide a better control of the process.
DS5

The DS5 is Davis-Standard’s secure service support system. It offers comprehensive customer service using a safe and secure high-speed Internet connection. (Note: It is the customer's responsibility to provide the high-speed Internet connection.)

Advantages include:

  • Faster response time to customer needs
  • Faster access time to diagnose and fix problems
  • Ability of Davis-Standard service personnel to connect to customer equipment from anywhere in the world
  • Safe and secure connection (only authorized users have system access)
  • Cost savings by avoiding lengthy downtimes
Expandable System Control Options

We offer several options to expand your current controls system. These include:

  • Downtime tracking and production monitoring
  • Company-wide telephone and messaging system
  • Real-time relational database for the factory
  • Basic tools to assist in organizing and presenting substantial production data
  • Connections to link multiple machines, office computers and plants together
  • Capabilities to view real-time production data from any computer, anywhere in the world using a standard Web browser
  • Automatic die control system
  • Resin feed system with gravimetric capability
ITALYCS® 5 from Brampton Engineering

ITALYCS® (Integrated Temperature And Layer Yield Control System) was first designed for blown film line control by blown film specialists in the 1980’s. Since then, continuous improvement of hardware and software combined with relentless focus on effective operation of multi-layer blown film lines have resulted in today’s Version 5.  Operate and control complex 11-layer lines, as easily as a monolayer line.

  • Simple, logical menu-driven interface
  • Remote operator station near the bubble for fine-tuning or trouble-shooting process
  • monitor, control, and repeatably change over all your vital process parameters
  • Microsoft SQL Server is used to store alarms, process values, setpoints and more for one year – timestamped data records give full traceability

Robust technology with a modern design:

  • Distributed IO over Ethernet/IP - drive and device upgrades are easier to implement
  • Allen-Bradley ControlLogix PLC and Point IO
  • HMI runs on rugged industrial PC from Siemens – third-party software (e.g. gauge measurement) can be integrated
  • 19” Siemens Industrial Touch Screen for all user inputs – keyboard & mouse also included and fully supported
  • A suite of responsive HMI apps programmed in C#

Main and Remote Stations are standard – run or monitor the line either from the floor or from near the bubble, with full redundancy

Want to learn more? Click to Contact us.

No post found

READ MORE
php
php
php
php
php
php

Looking for a high output reprocessing solution? Davis Standard’s extrusion capabilities for reprocessing combine innovative technologies for recycling the waste stream into a reusable product.

Our range of single screw and twin screw compounding and reprocessing systems address key efficiency factors such as: solids feeding and conveying, venting and devolatilization, compression and melting, polymer homogenization, and process controls.

Within our extrusion recycling technology line is scrap-reclaim and wide-mouth feed technology, ram stuffer and scrapper extruder options and complete reclaim systems. Heavy-duty gear reducers, customized feed throats, single or multi-venting options and process feed systems are just a few ways we can give you a competitive advantage.

Contact us to learn more

Film Reprocessing

In the area of extrusion technology for film reprocessing, Davis-Standard supplies extrusion systems that offer versatility for turning low bulk density film waste into a useable product. Extrusion systems typically include the extruder, a melt filtration device, pelletizing unit and material handling system. Material size reduction and transfer conveyors can be customized depending on application. Our relationships with major melt filtration and pelletizing suppliers ensure system continuity.

Our Ram Stuffer extruder model is specifically designed for processing the broadest range of feed stocks. This includes everything from light bulk density fluff to shredded flakes, and even heavy bulk density, regrind materials. The Ram Stuffer extruder uses a pneumatically actuated plunger to force the material into the feed section of the screw. The feed section has grooved technology to enhance the conveying of the feed material into the extruder barrel. In a similar way, our scrap reclaim extruder model uses the same wide mouth feed throat design as the Ram Stuffer without the pneumatic plunger. This affords a lower cost alternative when the feed material is slightly heavier in bulk density.

Typical Specifications

Applications - Stretch wrap, agricultural film, construction film, packaging film, general films, barrier and non-barrier, mono and multilayer films
Bulk Density - 32 to 400 kg/m3  / 2 to 25 lbs/ft3
Materials - Polyethylene, Polypropylene
Extruder Outputs - Up to 2700 kg/hr / Up to 6000 lbs/hr
Features - Wide range of line equipment solutions to suit customer's requirements and budgets, latest controls systems, full lines and systematic upgrade/retrofits

Foam Reprocessing

Davis-Standard supports the foam producer or recycler with innovative engineering and proven extrusion technology. Our extruders accommodate different requirements for reprocessing/recycling low bulk density foam waste into a reusable product in a cost-effective manner. We have relationships with major suppliers in the melt filtration and pelletizing market to provide integrated solutions.

Our signature Scrapper dual diameter extruder model is specifically designed to process low bulk density feed stocks, typically from XPS board shavings and millings. The Scrapper uses a large diameter feed section to allow this product to be processed at the highest output rates. This extrusion design incorporates grooved feed technology to more efficiently convey the feed material into the extruder barrel. As a lower cost alternative, we offer a foam scrap reclaim extruder for processing materials with a heavier bulk density such as thermoformed meat trays, plates and cups. These machines incorporate a tangential feed section and also use grooved feed technology to ensure efficient processing.

Typical Specifications

Applications - Foam board, foam sheet, edge regrind, thermoforming skeletons, roll waste
Bulk Density - 48 to 190 kg/m3 / 4 to 12 lbs/ft3
Materials - Polystyrene, Polyethylene, Polypropylene
Extruder Outputs - Up to 1000 kg/hr for the Scrapper and foam scrap reclaim units / Up to 2000 lbs/hr for the Scrapper and foam scrap reclaim units
Features - Wide range of line equipment solutions to suit customer's requirements and budgets, latest controls systems, full lines and systematic upgrade/retrofits

General Reprocessing

Davis-Standard’s reprocessing capabilities combine innovative extrusion technology with multiple options for reprocessing/recycling the waste stream into a reusable product. Our extruders are available in several designs to accommodate a wide variety of waste materials and add profitability to your operation. We supply specialty designs for low bulk density materials as well as more traditional designs to allow processing of irregular shaped chip, flake and regrind.

Our reclaim extruder models are capable of processing bulk density feedstocks, typically from injection molding, blow molding, sheet production and thermoforming processes. An oversized feed section allows irregular shaped feedstock to be processed at the highest possible output rates. We have several design options which enable us to optimize the extrusion system for a given material and application.

Typical Specifications

Applications - injection runners, foam sheet, edge regrind, thermoforming skeletons, roll waste
Bulk Density - 48 to 190 kg/m3 4 to 12 lbs/ft3
Materials - Polystyrene, Polyethylene, Polypropylene
Extruder Outputs - Up to 1000 kg/hr for the Scrapper and foam scrap reclaim units / Up to 2000 lbs/hr for the Scrapper and foam scrap reclaim units
Features - Wide range of line equipment solutions to suit customer's requirements and budgets, latest controls systems, full lines and systematic upgrade/retrofits

No post found

READ MORE
php
php
php
php
php
php

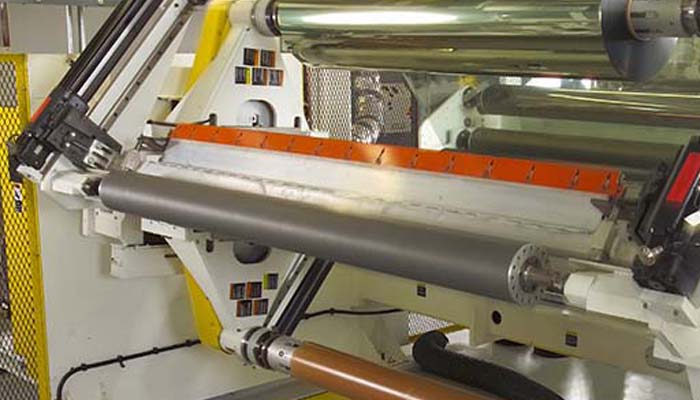

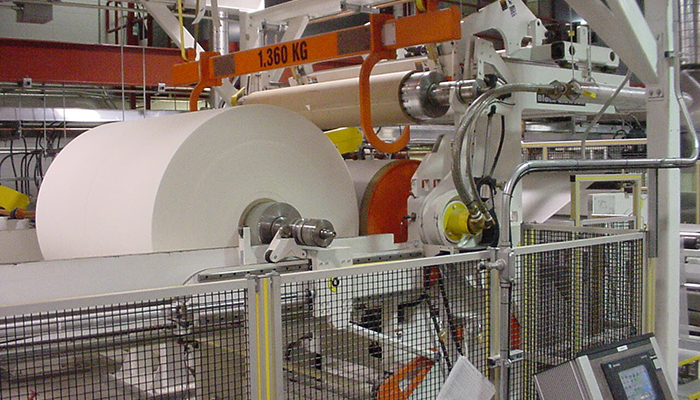

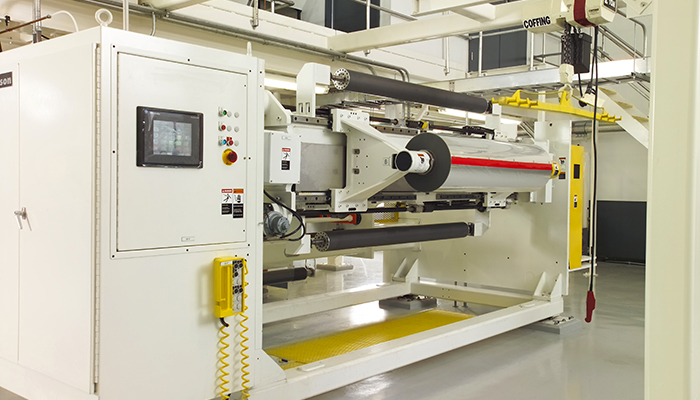

Winding and Unwinding Technology to Drive Productivity

Efficiency, value, performance – that’s the Davis-Standard solution in winding and unwinding. We have the industry’s largest selection of continuous winding and unwind systems and slitter rewinders.

We not only provide winding and unwinding technology, we provide solutions. Davis-Standard’s extensive line of equipment is supported by 50 years of first-hand experience in addressing the challenges of web handling, continuous splicing techniques and the pros and cons of inline slitting. Name the process – solution coating, extrusion coating, film, nonwoven and specialty applications – our winding and unwinding equipment is engineered for dependability, wound roll conformation and limited downtime.

In addition to ATS, cantilevered, non-woven, H Beam and Surfastart technology, we supply roll handling and die control, transfer and splicing systems and no waste designs to boost your productivity and ROI.

Contact us to learn more

Automation Roll Handling

In the area of automation roll handling, Davis-Standard designs and builds pivot shaft systems, removable shaft systems, shaft pullers, and lift tables including the full integration of controls. Controls integration is also available for equipment supplied by a third party such as wrapping, conveying, and storage systems. Pivot shaft systems can be supplied with select machines. Both pivot shaft and removable shaft systems are available in fully-automatic or semi-automatic arrangements. Custom engineering is offered for new equipment as well as field retrofits.

Highlights of a typical pivot shaft system

  • 45-second cycle times depending on application.
  • An unloading range of 30 to 90 degrees depending on facility space requirements.
  • Semi or automatic core loading with precision core positioning and core cutting options.
  • Doffing conveyors to automatically position the unloading roll diameter for a smooth transition, eliminating the possibility of shaft damage.

Highlights of typical removable shaft systems

  • Traversing lift table and pivot arm unloading systems for 80-second and greater than 80-second cycle times.
  • Semi or automatic core loading with precision core positioning and core cutting options.
  • Variable frequency driven mill duty shaft puller for smooth precision operation.
  • Lift tables with multiple options for different applications such as conveyor unloading, tilt tops, precision positioning for side-lay and offset wind applications.
Solution Coating

QFP Systems

Built for efficiency and profitability for rolls 50 inches (1,270mm) in diameter and below. These pre-engineered systems are delivered wired, piped, and tested for more efficient start-ups and to minimize costs. Shafted or shaftless versions are available to accommodate a variety of applications including solution coating, extrusion coating, flat and embossed films, non-wovens, CPP, and BOPP films. The QFP is available in three sizes: 30-inch and 42-inch (762mm and 1,066mm) diameter models for rolls up to 3,000 pounds or 1,360 kg (Model 20); and a 50-inch (1,270mm) diameter model for rolls up to 5,000 pounds or 2,268 kg (Model 30). Pre-engineered models are available in widths up to 120 inches (3,048mm). All models have a maximum speed of 2,000 fpm (610 mpm).

Meridian Systems

Built for efficiency and profitability for rolls up to 50 inches (1,270mm) in diameter. These systems are capable of line speeds to 3,000 fpm (914 mpm) and designed for solution coating and extrusion coating applications such as silicone coating, label stock, and flexible packaging snack bags. Shaftless, individually adjustable arm configurations and dual direction capabilities provide processor versatility. Meridian systems are capable of handling rolls up to 8,000 pounds (3,628 kg) and in widths up to 160 inches (4,064mm).

H Beam Systems

Built for efficiency and profitability for rolls greater than 50 inches (1,270mm) in diameter. These systems are capable of line speeds up to 3,000 fpm (914 mpm) and are designed for solution coating and extrusion coating applications such as adhesive laminating and board coating. Shafted or shaftless individually adjustable arm configurations and dual direction capabilities provide processor versatility. H Beam systems are capable of handling rolls up to 84 inches (2,134mm) in diameter, up to 15,000 pounds (6,800) and in widths up to 200 inches (5,080mm).

Horizontal Winders

Provides a cost and time-saving alternative by eliminating the slitting and rewinding steps for most processes, as well as scrap. This winder is widely used among hygienic film producers for applications such as diaper film, breathable film, and non-woven coating processes. High-speed, in-line slitting capabilities make the Horizontal a viable alternative to traditional turret winders. The winder's scrapless transfer mechanism generates high yields for extrusion applications by indexing the new core into a transfer position while the transfer is made without indexing the final roll. This is a faster, more efficient process when compared to standard turret winders which produce scrap during the index cycle of a full roll.

Super "T" Winder

Engineered for applications (i.e. release liners or tapes) where elimination of end roll waste is critical. This winder is capable of rolls up to 60 inches (1,524mm) in diameter with a 10,000 pound (4,536 kg) capacity. It features gap or controlled contact winding, center/surface winding capability, single direction stationary knife transfer, and auto core loading with latching on both sides.

Extrusion Coating

QFP Systems

Built for efficiency and profitability for rolls 50 inches (1,270mm) in diameter and below. These pre-engineered systems are delivered wired, piped, and tested for more efficient start-ups and to minimize costs. Shafted or shaftless versions are available to accommodate a variety of applications including solution coating, extrusion coating, flat and embossed films, non-wovens, CPP, and BOPP films. The QFP is available in three sizes: 30-inch and 42-inch (762mm and 1,066mm) diameter models for rolls up to 3,000 pounds or 1,360 kg (Model 20); and a 50-inch (1,270mm) diameter model for rolls up to 5,000 pounds or 2,268 kg (Model 30). Pre-engineered models are available in widths up to 120 inches (3,048mm). All models have a maximum speed of 2,000 fpm (610 mpm).

Meridian Systems

Built for efficiency and profitability for rolls up to 50 inches (1,270mm) in diameter. These systems are capable of line speeds to 3,000 fpm (914 mpm) and designed for solution coating and extrusion coating applications such as silicone coating, label stock, and flexible packaging snack bags. Shaftless, individually adjustable arm configurations and dual direction capabilities provide processor versatility. Meridian systems are capable of handling rolls up to 8,000 pounds (3,628 kg) and in widths up to 160 inches (4,064mm).

H Beam Systems

Built for efficiency and profitability for rolls greater than 50 inches (1,270mm) in diameter. These systems are capable of line speeds up to 3,000 fpm (914 mpm) and are designed for solution coating and extrusion coating applications such as adhesive laminating and board coating. Shafted or shaftless individually adjustable arm configurations and dual direction capabilities provide processor versatility. H Beam systems are capable of handling rolls up to 84 inches (2,134mm) in diameter, up to 15,000 pounds (6,800) and in widths up to 200 inches (5,080mm).

Surfastart Winders

Designed for in-line slitting and winding of large diameter product rolls on continuous process lines. Applications well suited for this winder include boards and laminates over 50 inches (1,270mm) in diameter as well as non-wovens sensitive to inwound tension. Features include a large diameter winding drum; precision nip pressure control; optional center-surface winding capability; optional tangential shear slitting section; and an integrated "S" wrap pull roll section. The Surfastart 2000 & 3000 features a controlled incline ramp for finished set rejection and roll-stop braking and optional support roll system for winding on small diameter core shafts. These features combined with the automatic self-contained roll and shaft handling system, improve productivity and minimize scrap.

Horizontal Winders

Provides a cost and time-saving alternative by eliminating the slitting and rewinding steps for most processes, as well as scrap. This winder is widely used among hygienic film producers for applications such as diaper film, breathable film, and non-woven coating processes. High-speed, in-line slitting capabilities make the Horizontal a viable alternative to traditional turret winders. The winder's scrapless transfer mechanism generates high yields for extrusion applications by indexing the new core into a transfer position while the transfer is made without indexing the final roll. This is a faster, more efficient process when compared to standard turret winders which produce scrap during the index cycle of a full roll.

Super "T" Winders

Engineered for applications (i.e. release liners or tapes) where elimination of end roll waste is critical. This winder is capable of rolls up to 60 inches (1,524mm) in diameter with a 10,000 pound (4,536 kg) capacity. It features gap or controlled contact winding, center/surface winding capability, single direction stationary knife transfer, and auto core loading with latching on both sides.

Film

BMX 2 Series

Engineered for stretch film applications up to 3 meters (10 feet) but can be adapted for winding of other applications with modifications to the lay-on system and web path. The winding system is a modular design incorporating the roll changer, turret, PLC and indexing servo controller into one package providing easy installation and stable operation at a high line speed. The single pivoting shaft design allows for manual or automatic roll removal and re-coring allowing for 45-second cycle times on hand wrap applications.

BMW S4 Series

Engineered to improve efficiencies for hand wrap and stretch film production. This winder is offered in two configurations; one with bleed trim (BT) for flexibility in winding roll sets and one with bleed trim less (BTL) for dedicated six up winding. The bleed trim less configuration reduces the cost of offline equipment and increases operations efficiency by up to 8 percent compared with conventional center support machines. This winder features an integrated automatic core and roll handling system and capabilities for producing six-up rolls on a 25-second cycle time, roll change to roll change. Based on upstream capabilities and 80 percent line uptime, the BMW S4 can produce up to 2,700 roll sets.

The BMW S4 is designed as a four spindle surface/center winder with center core shaft supports. This arrangement in conjunction with continuous, dual-surface-driven lay-on rolls enables production of "flat-tail" film rolls. Flat-tail rolls are wound from the top side of the web (the side against the chill roll) into the roll to produce inline-slit films that are virtually scrap-free from the core to the last wrap for both hand and machine wrap stretch films.

BMX 2x Series

Ideal for winding stretch film wrap up to 4.2 or 4.8 meters (14 or 16 feet). The winding system provides a European compact modular design incorporating the roll changer, two side-by-side turret assemblies, PLC and indexing servo controller into one package providing easy installation and stable operation at high line speeds. Automatic roll removal and re-coring are offered as an option. Other features include rigid core shaft supports, easy start bleed trim assemblies, and an isolation pull roll.

BMW 2 Dual Pivot Series

Engineered for stretch film applications of 4.3 and 4.8 meters (14 and 16 feet). This machine series is a cost-effective solution incorporating a single turret assembly compared to other machines which utilize two separate turret assemblies. The winding system is a modular design incorporating the roll changer, turret, PLC, and indexing servo controller into one package providing easy installation and stable operation at high line speed. The dual pivoting shaft design allows for manual roll removal or optional automatic roll removal and re-coring on the 4.3 meter (14 ft.) configuration allowing for 50 second cycle times on hand wrap applications. Both configurations can be mounted on linear slides allowing the winder to side shift for slit lane width changes.

Combi Cast Systems

Pre-engineered, modular system built for bleed trim slitting of packaging films (i.e. cheese packaging, candy wrap, and bread bags). This machine is capable of diameters up to 42 inches (1,066mm) and web widths to 120 inches (3,048mm). Depending on the application, this machine can be fitted with either a QFP stand-alone turret or robotic winder.

600 Series

Pre-engineered, modular system for in-line slitting of embossed films such as diaper, hygienic, breathable films, and non wovens. This machine is capable of diameters up to 60 inches (1,524mm) and web widths to 140 inches (3,556mm). Depending on the application, this machine can be fitted with either a QFP stand-alone turret or robotic winder. Web path and idler construction through the roll changer allow for wrinkle-free web conveyance. Spreading of the slit lanes is done via a dual driven spreader system located as close as possible to the winding spindle to eliminate interweaving.

QFP Systems

Built for efficiency and profitability for rolls 50 inches (1,270mm) in diameter and below. These pre-engineered systems are delivered wired, piped, and tested for more efficient start-ups and to minimize costs. Shafted or shaftless versions are available to accommodate a variety of applications including solution coating, extrusion coating, flat and embossed films, non-wovens, CPP, and BOPP films. The QFP is available in three sizes: 30-inch and 42-inch (762mm and 1,066mm) diameter models for rolls up to 3,000 pounds or 1,360 kg (Model 20); and a 50-inch (1,270mm) diameter model for rolls up to 5,000 pounds or 2,268 kg (Model 30). Pre-engineered models are available in widths up to 120 inches (3,048mm). All models have a maximum speed of 2,000 fpm (610 mpm).

C-Horizon Series

Engineered specifically for CPP films. It is built with several advantages including static edge control for winding light tensions at large diameters without telescoping, and a turntable bearing with an external gear for heavy mill rolls. The Series C has a tension range of 1.8 to 4.55 kg per meter (4 to 10 lbs/m), a width range of 3.0 to 5.3 meters (10 to 17 feet), a diameter of 800 to 1,200mm (31.5 to 47 inches), and is capable of speeds from 30 to 300 mpm (98 to 980 fpm).

General Purpose Blown Film Turret Winders: Models 1000, 1050, 1100, 1150, 1480, 1580

The GP Series blown film winders incorporate a modular design for multiple configurations. These winders are capable of 24, 30, 40 and 48-inch (600 to 1,200mm) diameter rolls in a wide range of widths in 10-inch (254mm) increments. Both the duplex (stacked) models (1050 and 1150) and single turret models (1000, 1100, 1480 and 1580) are equipped with dancer tension controls and pivoting lay-on assemblies as well as manual and/or automatic transfers for maximum flexibility. The duplex models also include an integral lower nip and slitter unit.

Horizon Series Blown Film Turret Winders: Models 1200, 1250, 1400, 1450, 1500, 1600

The Horizon Series winders feature a modular design for multiple configurations and are capable of 24-inch (610mm), 30-inch (762mm), 40-inch (1,016mm) and 48-inch (1,200mm) roll diameters in a range of widths in 10-inch (254mm) increments. These winders feature a linear horizontal lay-on roll that makes contact with the winding roll parallel to the floor, which provides precise control of the lay-on pressure. Single turret models include the model 1200, 1400, 1500 and 1600. Duplex (stacked) models include the 1250 and 1450 models with a 24 and 30-inch (600 and 760mm) roll capability.

Model PAC 50 Winder

Capable of 50-inch (1,270mm) roll diameters and features a pneumatically actuated assembly that loads the winding roll horizontally against the winding drum through roll build-up. An optional unloading assembly is available to lower the finished roll to the floor. The PAC 50 pivots the winding roll through a hydraulically operated pressure arm assembly to control a force range between the large winding drum and the winding roll of the film during build-up. Additionally, the PAC 50 can be equipped with a center drive for heavy slippery materials.

Model PAC 60 Winder

Ideal for building large rolls for operations where the film is either converted into a lamination or into bags or sacks off-line. This winder enables converters to wind 60-inch (1,524mm) diameter rolls on 6-inch (152mm) cores at speeds up to 600 fpm (183 mpm). It features lay-on pressure control to prevent blocking at the core which is made possible via a hydraulic control circuit and transducers utilizing a pressure feedback circuit to consistently maintain lay-on pressure.

Model 1700 Series

Designed for speeds up to 600 fpm (183 mpm) to wind rolls up to 12 inches (300mm) in diameter on 3-inch (75mm) cores. It features adhesiveless automatic cut/transfer as well as cantilevered swing-out shafts for easy roll removal.

Model 1650 Series

Based on technology for wide width cast film applications, the Model 1650 winder is capable of winding film in widths up to 150 inches (3,810mm) using 3-inch (75mm) shafts. It is also capable of shaftless winding on cores 40 to 140 inches (1,016mm to 3,556mm) wide; a unique capability for winders of this type. For added versatility, the Model 1650 is equipped to handle folded, gusseted tubing and in-line slit sheet on the same winder.

Agricultural Film Winder

This winder is a single turret winder with dancer tension control and AC drives. The primary advantage of this design is that it features a servo driven shear type knife assembly that cuts through multiple folded layers of heavy film. It can be run in shafted or shaftless mode with moveable turret arms using cardboard cores for a small roll, high-frequency changeover operation. Speeds are typically in the 150 fpm (46 mpm) range but can go as high as 300 fpm (92 mpm) with a maximum roll diameter of 24 inches (600mm).

SLC Series

The SLC Series of surface winders provide a high capacity winding solution spanning an extremely wide range of applications. Widths from 40 to 130 inches (1,016 to 3,302mm) are available. Roll diameters of up to 60 inches (1,500mm) are available on the SLC 1000 along with integral nip and roll unloading. A full range of options cover high-speed operations, center drives and shaft handling.

TEC-2 Winder

The revolutionary design of the TEC-2 simplifies center winders by eliminating the turret. The lay-on roll moves between stationary shafts for quick cut/transfers. Additionally, the TEC-2 can be outfitted to comply with ergonomic requirements by integrating a swing-out hoist shaft extraction and roll-handling unit that reduces operator lifting requirements. The overhead hoist shaft pivots the roll out of the winder and a shaft puller removes the roll, eliminating the operator's need to lift. In addition to the roll unloading capabilities, this winder is a compact, low-cost alternative for processors.

Non-Woven Products

600 Series

Pre-engineered, modular system for in-line slitting of embossed films such as diaper, hygienic, breathable films, and non wovens. This machine is capable of diameters up to 60 inches (1,524mm) and web widths to 140 inches (3,556mm). Depending on the application, this machine can be fitted with either a QFP stand-alone turret or robotic winder. Web path and idler construction through the roll changer allow for wrinkle-free web conveyance. Spreading of the slit lanes is done via a dual driven spreader system located as close as possible to the winding spindle to eliminate interweaving.

QFP Systems

Built for efficiency and profitability for rolls 50 inches in diameter and below. These pre-engineered systems are delivered wired, piped, and tested for more efficient start-ups and to minimize costs. Shafted or shaftless versions are available to accommodate a variety of applications including solution coating, extrusion coating, flat and embossed films, non-wovens, CPP, and BOPP films. The QFP is available in three sizes: 30-inch and 42-inch (762mm and 1,066mm) diameter models for rolls up to 3,000 pounds or 1,360 kg (Model 20); and a 50-inch (1,270mm) diameter model for rolls up to 5,000 pounds or 2,268 kg (Model 30). Pre-engineered models are available in widths up to 120 inches (3,048mm). All models have a maximum speed of 2,000 fpm (610 mpm).

Surfastart Winders

Designed for in-line slitting and winding of large diameter product rolls on continuous process lines. Applications well suited for this winder include boards and laminates over 50 inches (1,270mm) diameter as well as non-wovens sensitive to inwound tension. Features include a large diameter winding drum; precision nip pressure control; optional center-surface winding capability; optional tangential shear slitting section; and an integrated "S" wrap pull roll section. The Surfastart 2000 & 3000 features a controlled incline ramp for finished set rejection and roll-stop braking and optional support roll system for winding on small diameter core shafts. These features combined with the automatic self-contained roll and shaft handling system, improve productivity and minimize scrap.

Specialty Systems

Advanced Technology Surface Winder (ATS)

The ATS winder is designed for consistent in-line slitting and winding of roll diameters up to 62 inches (1,575mm) on cores as small as 3 inches (75mm). Engineered to limit shaft deflection, this winder reduces critical speed issues before an automatic transfer to new cores, eliminating wrinkles and core start problems. Slit rolls can be surface wound using programmed tension, nip, and torque. Rolls are supported on the winding drum and driven support drum throughout the entire winding cycle providing your process with high quality, inline slit products.

Cantilevered Unwind/Winding Systems

Davis-Standard offers custom unwind and winder equipment with cantilevered shafts for a variety of applications including polystyrene foam, film, and paper. This design is ideal for applications requiring small to large roll diameters as it enables the converter to easily unload and load the machine from the side. These designs are available with automatic transfer systems and load/unload systems.

Horizontal Winders

Provides a cost and time-saving alternative by eliminating the slitting and rewinding steps for most processes, as well as scrap. This winder is widely used among hygienic film producers for applications such as diaper film, breathable film, and non-woven coating processes. High-speed, in-line slitting capabilities make the Horizontal a viable alternative to traditional turret winders. The winder's strapless transfer mechanism generates high yields for extrusion applications by indexing the new core into a transfer position while the transfer is made without indexing the final roll. This is a faster, more efficient process when compared to standard turret winders which produce scrap during the index cycle of a full roll.

Fixed Position Unwind/Winding Systems

Customize any of the company's unwind or winder systems to accommodate a fixed position set-up. Unwind systems can include either a brake or regenerative tension holdback with or without peel rolls. Winding systems are available with torque, dancer, or load cell tension control without lay-on systems or with lay-on systems found on our continuous machines.

Robotic Winder

For processes requiring a large range of roll sizes, the robotic winder in-line slitting system is an excellent option. It features an articulating arm design for rolls up to 60 inches (1,524mm) in diameter and with a 3,500 pound (1,588 kg) capacity. This winder produces minimal outer waste scrap as compared to conventional turret winders and will produce zero outer waste scrap when used with a roll changer equipped with the offset wind feature. Depending on the application, this machine can be fitted with either a Combi Cast or 600 Series roll changer. It also features stationary or static knife transfers to support a variety of processes.

Super "T" Winder

Engineered for applications (i.e. release liners or tapes) where elimination of end of roll waste is critical. This winder is capable of rolls up to 60 inches (1,524mm) in diameter with a 10,000 pound (4,536 kg) capacity. It features gap or controlled contact winding, center/surface winding capability, single direction stationary knife transfer, and auto core loading with latching on both sides.

Zero Speed Accumulator Winding Series

Ideal for heavy, hard-to-cut industrial products including substrates such as roofing, felt, and insulation as well as when a straight-line, fray-less no fold back cut is needed. These systems range from simple manual systems to automated systems involving roll and core handling. Depending on the application, these systems are available with surface or center winding capabilities.

Slitter Rewind Systems

Accuflyte Slitter Rewind Systems

Accuflyte slitter rewind systems feature the latest advances in slitting and surface winding technology to combine access, visibility, and operator safety. Advantages include interlocking slitters, shaftless carriages, a ride roll system, and air conveying threading system. The Accuflyte supports roll diameters up to 75 inches (1905 mm). The computerized winding system control and shaftless operation make accuracy and repeatability a constant. Due to its high production capabilities, modular design, and proven performance of this rewind system is ideal for non wovens, paper, and paperboard applications.

Advanced Technology Surface Winder (ATS)

The ATS surfance winder is designed for consistent in-line slitting and winding of roll diameters up to 62 inches (1,575mm) on cores as small as 3 inches (75mm). Engineered to limit shaft deflection, this winder reduces critical speed issues before an automatic transfer to new cores, eliminating wrinkles and core start problems. Slit rolls can be surface wound using programmed tension, nip, and torque. Rolls are supported on the winding drum and driven support drum throughout the entire winding cycle providing your process with high quality, inline slit products.

BC 3000 Slitter Rewind Systems

These slitter rewind systems are engineered for accurate, high-speed rewinding with controlled and predictable roll formation to rewind diameters up to 60 inches (1,524mm). The center/surface winding capabilities make it possible to handle materials ranging from papers to laminates and non-wovens.

DR-50 Duplex Slitter Rewind Systems

DR-50 slitter rewind systems are engineered for accurately winding specialty papers and slipper materials at speeds up to 3,000 fpm (914 mpm). The DR-50 provides precise density control even when caliper variations exist to achieve optimal consistency. The rugged, mill duty design enables this system to accurately form the largest rolls at the highest possible speeds. The AccuWind computer control improves efficiency levels and further promotes roll uniformity.

Modulant Systems

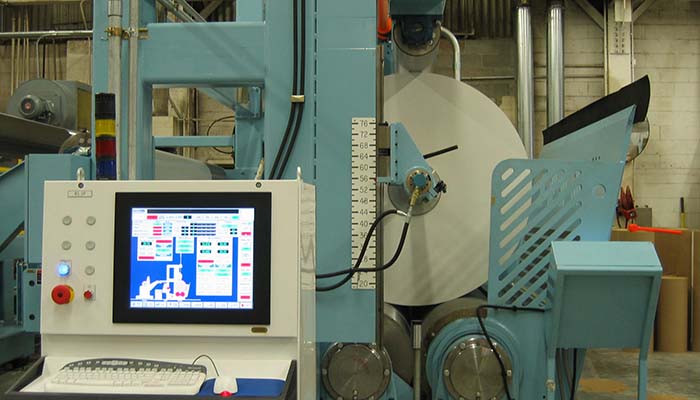

Modulant systems are designed to accommodate a wide range of processes and web requirements. This system is ideal for non wovens, paper, and paperboard applications as it provides high production, shaftless slitting and surface winding of roll diameters up to 90 inches (2,286mm) at speeds up to 7,000 fpm (2,134 mpm). As the name indicates, the Modulant is modular in design to provide superior efficiency as well as ease of operation and self-contained roll handling.

Surfastart Winders

Surfastart winders are designed for in-line slitting and winding of large diameter product rolls on continuous process lines. Applications well suited for this winder include boards and laminates over 50 inches (1,270mm) diameter as well as non-wovens sensitive to inwound tension. Features include a large diameter winding drum; precision nip pressure control; optional center-surface winding capability; optional tangential shear slitting section; and an integrated "S" wrap pull roll section. The Surfastart 2000 & 3000 features a controlled incline ramp for finished set rejection and roll-stop braking and optional support roll system for winding on small diameter core shafts. These features combined with the automatic self-contained roll and shaft handling system, improve productivity and minimize scrap.

FlexWIN® from Brampton Engineering

The FlexWIN® line of winders are the most versatile blown and cast film winders on the market today. FlexWIN® offers an impressive range of winding options and features with advanced precision tension control and contact pressure to ensure superior roll quality, and patented technology to ensure no fold-over and tapeless transfer to provide a smooth foundation for the roll.

  • Wind thin, thick, extensible, slippery, tacky, barrier films
  • Center/Surface/Gap modes
  • Forward & Reverse Winding
  • Up to 47” diameter rolls and up to 140” web widths
  • BE ZIP® Knife tapeless transfer for clean starts with zero fold-over
  • Enhanced Tension Control
  • Infeed Nip or Pull roll with cooling capacity
  • Servo Drive Technology
  • Bi-Directional BE Controlled Roll Cart and shaft stand for full automation
  • Designed to ANSI/SPI B151.5-2000 Winder Standard for operator safety
Horizontal Winder from ER-WE-PA GmbH

The horizontal winder from Davis-Standard’s German subsidiary, ER-WE-PA GmbH, is engineered for high speeds (up to 1,000 mpm) for in-line slitting of thin gauge structures. This best-in-class winder supports diverse applications with in-line, multi-slitting for reduced waste and better automation, exceptional web handling, and contact winding from start to finish. Applications include hygiene films, barrier films, fabric coating, non-woven laminates, and complex flexible structures. Advantages such as automated core positioning and transport, narrow width in-line slitting, and consistent roll quality contribute to efficiency. An integrated lifting table for roll handling after winding, an automatic glueless splicing system, and versatile design for one or two direction transfer facilitate ease of operation.

Typical Specifications:

Web width: up to 2500 mm (98 inches)
Roll diameter: 250 to 2000 mm (10 – 79 inches)
Speed: 80 to 1000 m/min (263 -3281 fpm)
Materials: Paper, film, board



No post found

READ MORE
